WCPRIMARY CRUSHER

WC series are perfectly designed
for primary crushing.

Interchangeable Jaws deliver outstanding productivity in variety of applications.
Twin pins and large bore twin cylinder gives wide jaw opening, exceptional crushing force and balance to the carrier.
Three Jaw types currently available including Crusher, Pulverizer, Shear.
A Speed up valve provides fast opening and closing times.

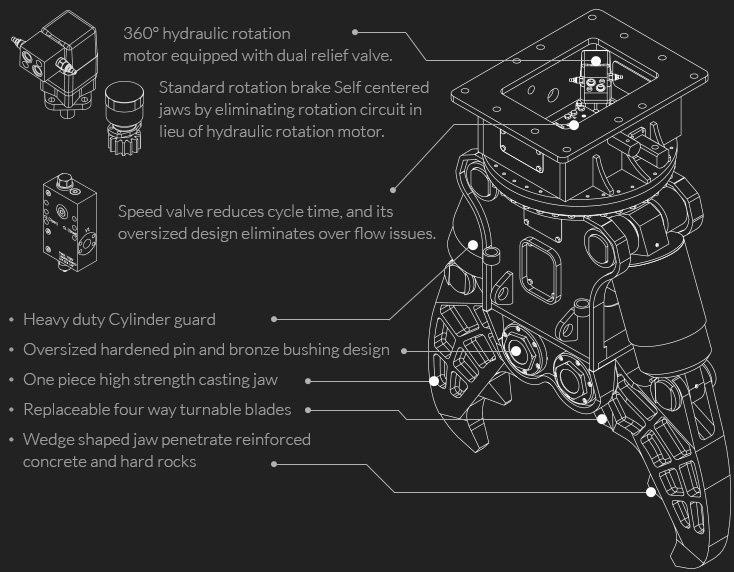

Dual Cylinder Dual Pin design provides
  • Wide opening and tremendous initial crushing force, and optimized angle of attack.
  • Symmetric design and independent cylinder movement minimize the stress to the carrier.

The structure is manufactured from high-strength, abrasion-resistant steel for permanent use.
Full 360 degree hydraulic rotation provides an effective angle of attack for any job wherever the location.

Model Unit WC
15(R*)V		 WC
20(R)V		 WC
25(R)V		 WC
30(R)V		 WC
45(R)V		 Unit WC
15(R*)V		 WC
20(R)V		 WC
25(R)V		 WC
30(R)V		 WC
45(R)V
Carrier Weight MT 12~18 18~22 22~28 28~35 38~50 MT 12~18 18~22 22~28 28~35 38~50

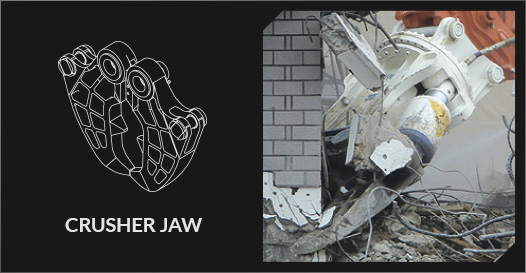

Weight c/w Crusher Jaw kg 1,250 1,580 2,100 2,750 5,350 lb 2,750 3,476 4,620 6,050 11,770
Crusher Jaw Weight 253 270 540 500 1,240 557 594 1,188 1,100 2,728
Opening mm 750 890 980 1,100 1,400 Inch 30 35 39 43 55
Blade Length 140 190 220 250 250 6 7 9 10 10

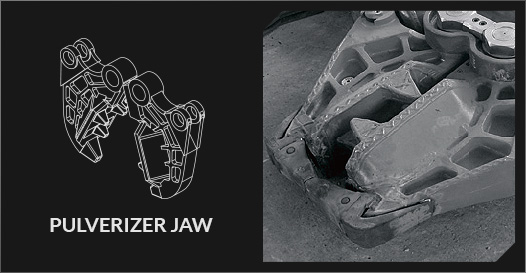

Pulverizer Jaw Weight kg 220 340 660 660 1,500 lb 484 748 1,452 1,452 3,300
Opening mm 780 890 980 1,080 1,400 inch 31 35 39 43 55
Thickness 250 280 340 370 415 10 11 13 15 16
Blade Length 140 190 220 250 250 6 7 9 10 10

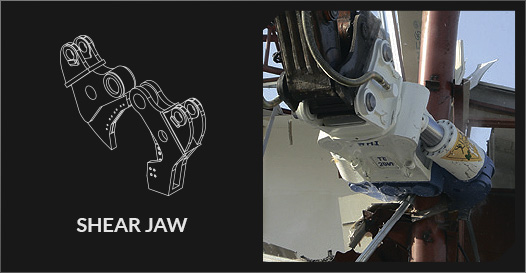

Shear Jaw Weight kg 235 312 450 625 1,850 lb 517 686 990 1,375 4,070
Opening mm 390 430 514 520 820 Inch 15 17 20 20 32
Depth 415 475 545 595 955 16 19 21 23 38
Cutting Force [A, Throat] ** Metric ton 370 560 645 740 1220 lb (X1000) 814 1,232 1,419 1,631 2,688
Crushing Force [B] Middle Metric ton 140 210 230 275 530 lb (X1000) 308 461 507 606 1,168
[C] Tip 90 115 140 175 280 198 251 308 385 617
Rated Pressure bar 300 320 320 320 320 psi 4,350 4,600 4,600 4,600 4,600
Rated Oil Flow lpm 180 230 240 260 380 gpm 47 61 63 69 100

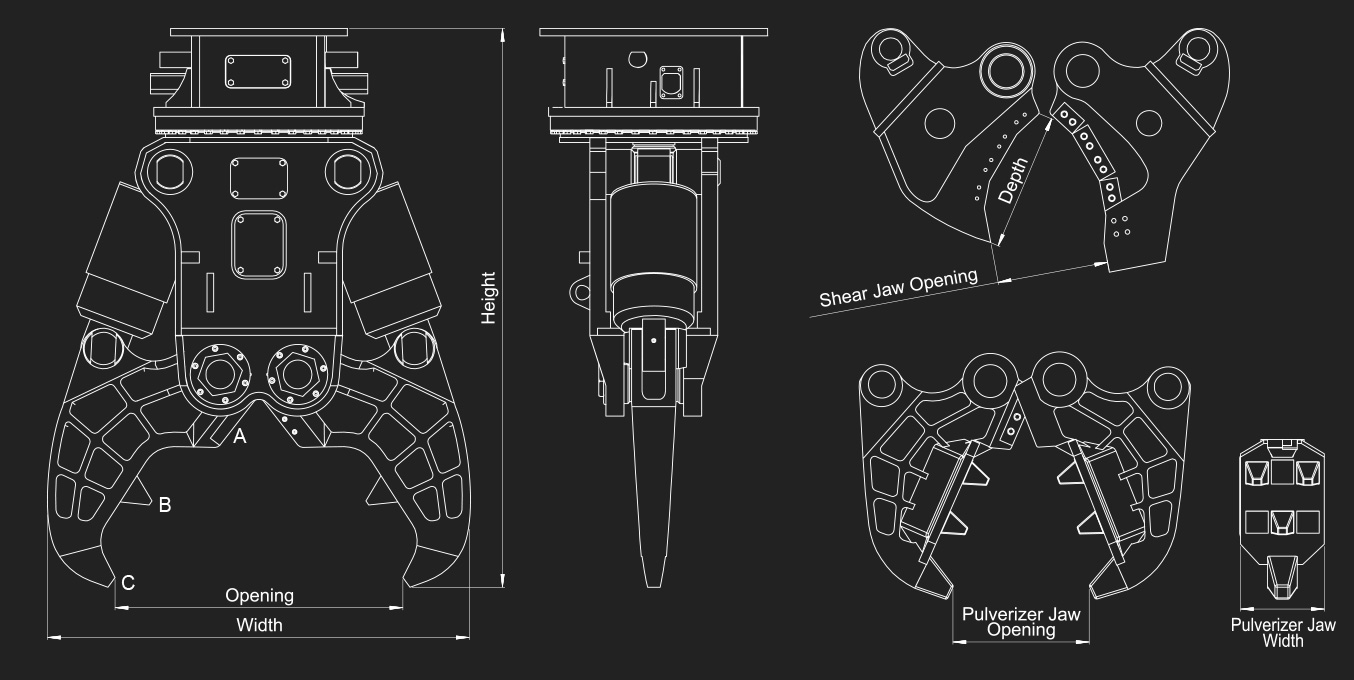

DIM withCrusher jaw Height *** mm 1,620 2,100 2,280 2,450 2,850 inch 64 83 90 96 112
Width 1,120 1,280 1,450 1,720 2,350 44 50 57 68 93
Hyd. Rotation Pressure bar 210 210 210 210 210 Psi 3000 3000 3000 3000 3000
Oil Flow lpm 28~32 40~55 32~45 32~45 75~105 gpm 7~8 10~14 8~12 8~12 20~27
Speed RPM 10~15 10~15 10~15 10~15 10~15 RPM 10~15 10~15 10~15 10~15 10~15
Cycle time**** Open sec 1,8 2,1 2,9 3,4 4,3 sec 1,8 2,1 2,9 3,4 4,3
Close 1,7 2,3 2,7 4,1 5,5 1,7 2,3 2,7 4,1 5,5
  • Above specifications are subject to change without prior notice for performance enhancement.
