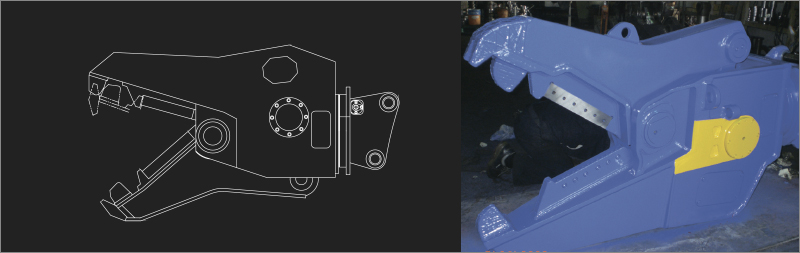

CUSTOM CRUSHER CUTTERWSOPRIMARY CRUSHER CUTTER

Specially designed to process concrete and steel beams at the same time without changing jaws.

  • Heavy duty compact design using high strength steel and high abrasion-resistant steel.
  • Trunnion mounted cylinder provides a compact profile.
  • Oversized speed valve reduces the cycle time and eliminates over flow issuse.
  • Replaceable four way turnable cutter blades.
Model : WSO400RV

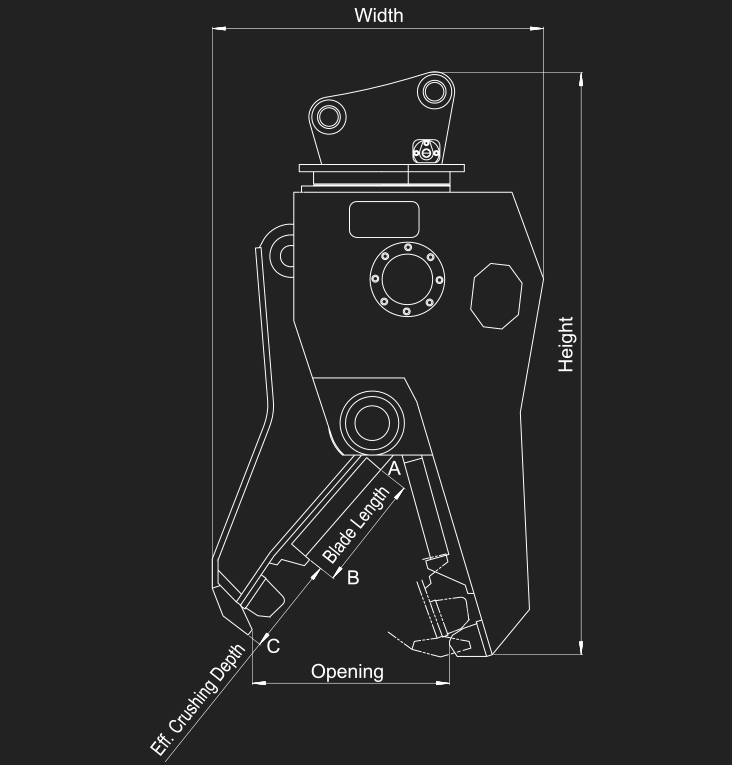

UNIT WSO400RV UNIT WSO400RV
Carrier Weight MT 8~14 MT 8~14
Operating Weight kg 1,200 lb 2,640
Opening mm 650 inch 39
Eff. Crushing Depth 290 11
Blade Length 350 14
Cutting Force [A] Throat Metric ton 186 lb (X1000) 409
[B] Middle 108 238
Crushing Force [C, Tip] Metric ton 57 lb (X1000) 123
Rated Pressure bar 320 psi 4,500
Rated Oil Flow lpm 160 gpm 42
DIM Height * mm 1,850 inch 73
Length 1,050 14
Width 350 14
  • Specifications subject to change without notice.

    * Height : Pin-on Mounting
