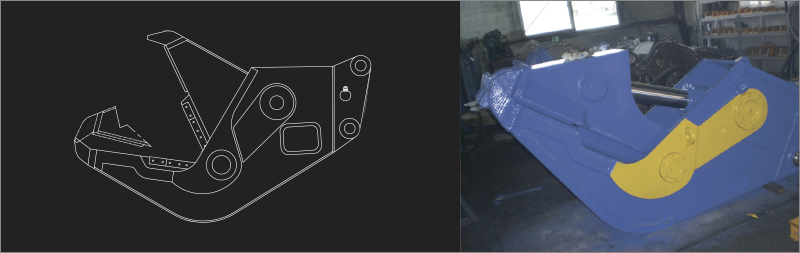

CUSTOM CRUSHER CUTTERWPPSECONDARY CRUSHER CUTTER

Specially designed to process reinforced concrete post using flat jaw and long cutter blades.

  • Heavy duty compact design using high strength and high abrasion-resistant steel.
  • Trunnion mounted cylinder provides a compact profile.
  • Oversized speed valve reduces the cycle time and eliminates over flow issues.
  • Replaceable four way turnable cutter blades.
Model : WSO400RV
UNIT WPP25V UNIT WPP25V
Carrier Weight MT 20~30 MT 20~30
Operating Weight kg 1,850 lb 4,070
Jaw Opening mm 1,000 inch 39
Eff. Crushing Depth 480 19
Blade Length 420 17
Cutting Force [A] Throat Metric ton 300 lb (X1000) 661
[B] Middle 75 166
Crushing Force [C, Tip] Metric ton 43 lb (X1000) 95
Rated Pressure bar 320 psi 4,500
Rated Oil Flow lpm 240 gpm 63

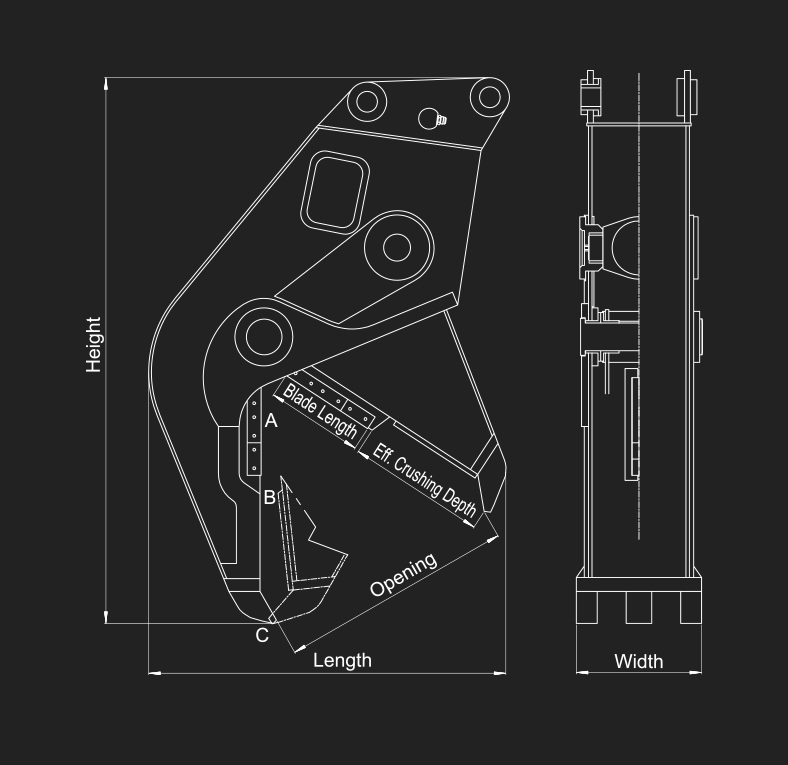

DIM Height * mm 2,530 inch 100
Length 1,540 61
Width 540 21
Cycle time ** Open sec 1.8 sec 1.8
Close 2.0 2.0
  • Specifications subject to change without notice.

    * Height : Pin-on Mounting
    ** Cycle time measured at rated flow under no load.
