WSMULTI PROCESSOR

WS Series Multi Processors are the most versatile tools for demolition & recycling operations.

Interchangeable Jaws deliver outstanding productivity in variety of applications.

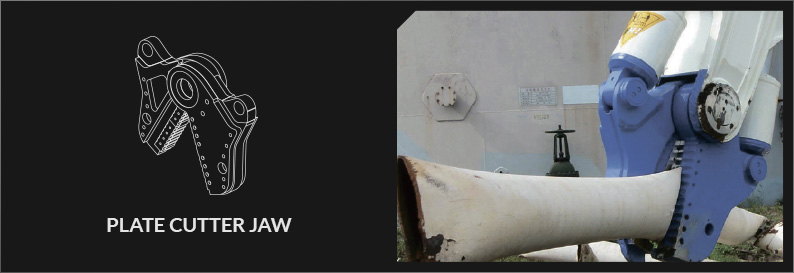

Four Jaw types available including Crusher,Pulverizer,Shear,Plate Cutter jaws.
Twin large bore cylinder design will maintain its strength through the complete stroke.

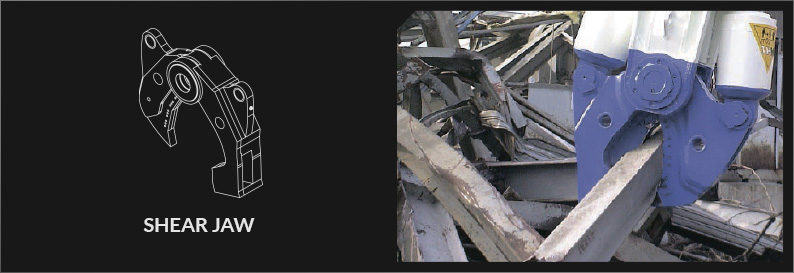

Unlike bulky second member shear, WS with Shear Jaw provides high maneuverability and production in scrap yard.

Single Pin dual cylinder design provides
  • Optimized shearing/ cutting angle and continuos force through the cycle.
  • Zero slip between two jaws.
  • Symmetric design and independent cylinders movement minimize the stress to the carrier.
Model : WS500 RV, WS600 RV

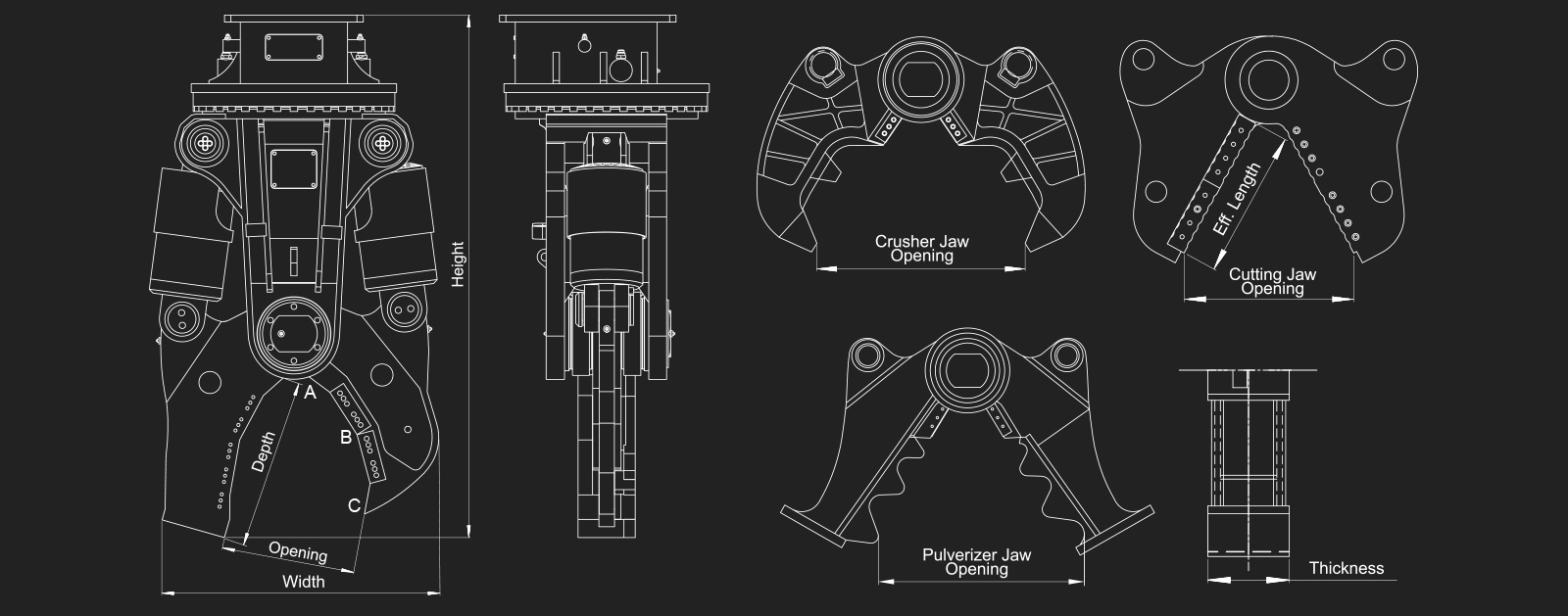

UNIT WS500 RV WS600 RV UNIT WS500 RV WS600 RV
Carrier Weight MT 18~25 25~35 MT 18~25 25~35
Weight c/w Shear Jaw kg 2,200 3,100 lb 4,840 6,820
Shear
Jaw		 Weight kg 575 936 lb 1,270 2,060
Opening mm 490 530 inch 19 21
Depth 585 680 23 27
Cutter
Jaw		 Weight kg 980 1,200 lb 2,160 2,640
Opening mm 710 760 inch 28 30
Eff. Length 625 690 25 27

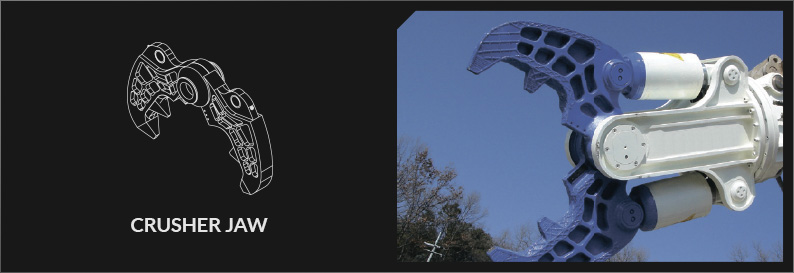

Crusher
Jaw		 Weight kg 680 740 lb 1,500 1,630
Opening mm 950 1,050 inch 37 41
Blade Length 150 170 6 7

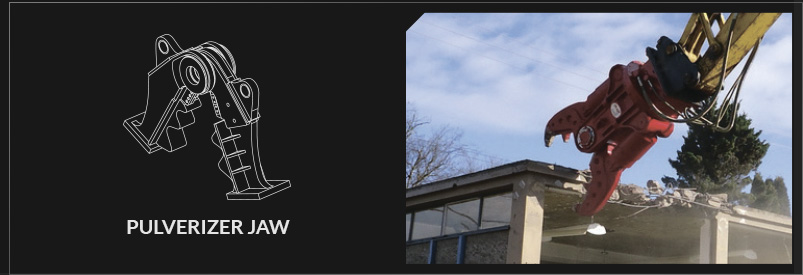

Pulverizer
Jaw		 Weight kg 680 880 lb 1,500 1,940
Opening mm 850 950 inch 33 37
Thickness 270 290 11 11
Blade Length 150 170 6 7
Crushing
Force		 [A] Throat Metric
ton		 450 590 lb
(X1000)		 992 1,300
[B] Middle 290 366 639 806
Piercing Force [C,Tip] Metric
ton		 160 211 lb
(X1000)		 352 464
Rated Pressure bar 320 320 psi 4,600 4,600
Rated Oil Flow lpm 230 260 gpm 61 69
DIM with
Crusher jaw		 Height *** mm 2,070 2,390 inch 81 94
Width 1,150 1,350 45 53
Hyd.
Rotation		 Pressure bar 210 210 psi 3,000 3,000
Oil Flow lpm 32~45 32~45 gpm 8~12 8~12
Speed RPM 10~15 10~15 RPM 10~15 10~15
Cycle time ** Open sec 2.8 3.5 sec 2.8 3.5
Close 2.6 4.2 2.6 4.2
  • Specifications subject to change without notice.
  • Contact us to check availability of models outside of these ranges

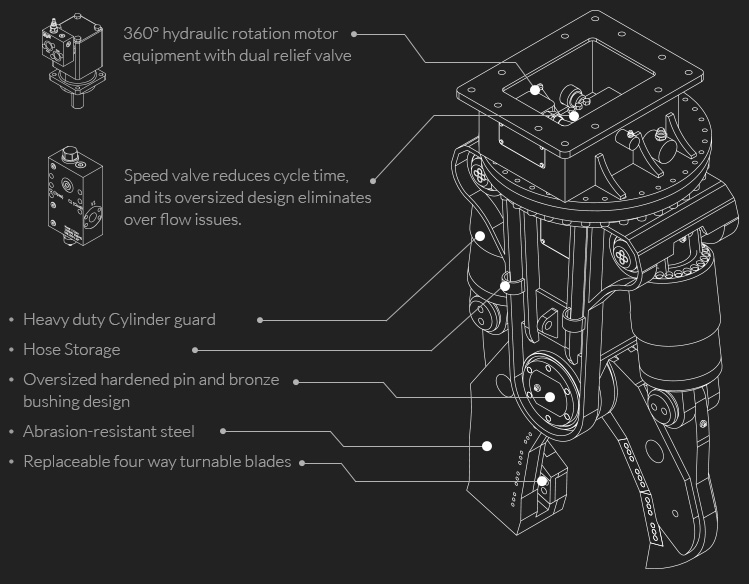

  • Continuous 360degree hydraulic rotation is standard.

    * Height : Flat Top Mounting
    ** Cycle time measured at rated flow under no load.
