WPIELECTROMAGNETIC PULVERIZER

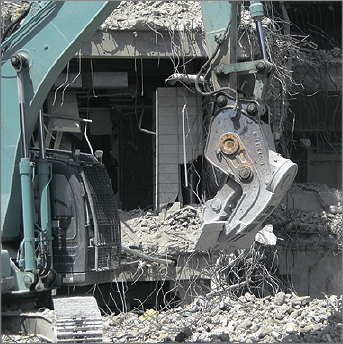

Equipped with magnet, this perfect tool is designed to recycle concrete on site and separate rebar and light steel.

Eliminates hand picking costs and makes for a safer work environment. The electromagnet is powered by 24V DC from the carrier, and no additional power generator is required.

  • Heavy duty compact design using high strength steel and high abrasion-resistant steel.
  • Trunnion mounted cylinder provides a compact profile.
  • Oversized speed valve reduces the cycle time and eliminates over flow issues.
  • The widest jaw opening in its class.
  • Replaceable four way turnable cutter blades.
  • Replaceable bolt-on alloy steel jaw plate.
  • Replaceable digging teeth.
Model : WPI25V
UNIT WPI25V UNIT WPI25V
Carrier Weight MT 20~25 MT 20~25
Operating Weight kg 2,050 lb 4,510
Jaw Opening mm 950 inch 37
Blade Length 200 8
Cutting Force [A] Metric ton 302 lb (X1000) 664
Cutting Force [B] Middle Metric ton 95 lb (X1000) 209
[C] Tip 62 136
Rated Pressure bar 320 psi 4,500
Rated Oil Flow lpm 240 gpm 63

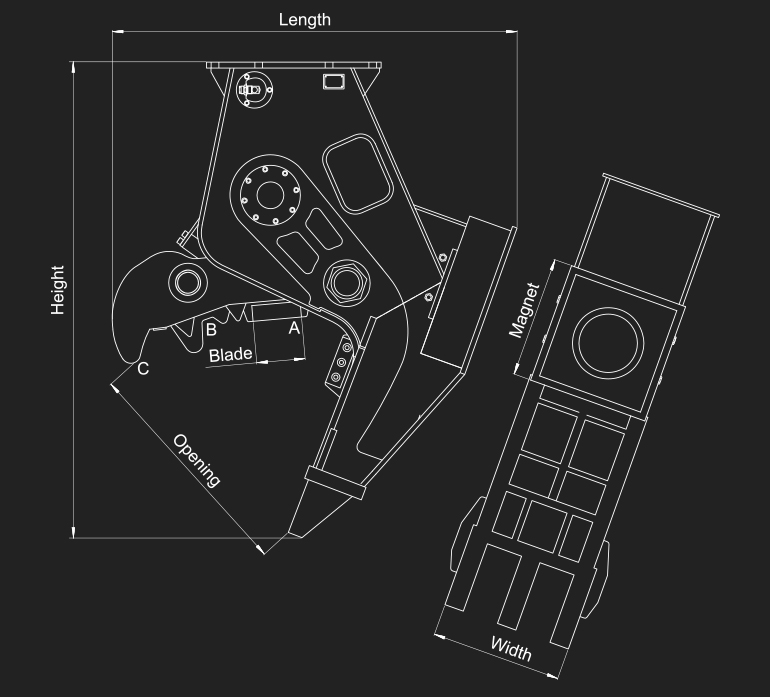

DIM Height * mm 1,930 inch 76
Length 1,660 65
Width 540 21
Cycle time ** Open sec 2.5 sec 2.5
Close 2.2 2.2
Magnet Size *** mm 500x500 inch 20x20
Voltage V 24 V 24
Amp A 34 A 34
Duty Ratio % 50 % 50
Capacity kg 1,500 lb 3,300
  • Specifications subject to change without notice.

    * Height : Flat Top Mounting
    ** Cycle time measured at rated flow under no load.
    *** Round Shape is optional
