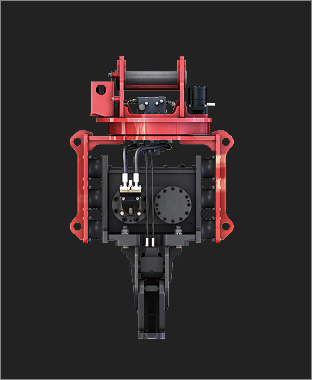

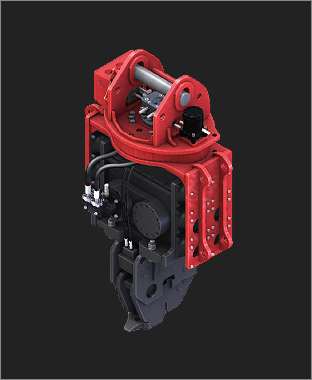

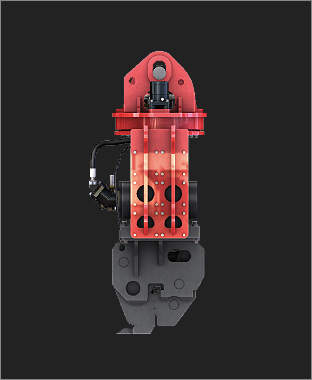

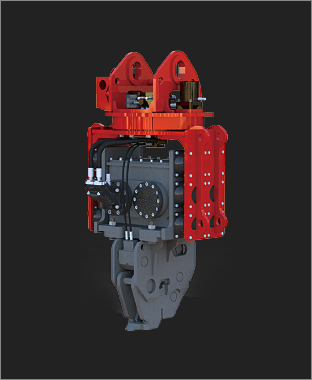

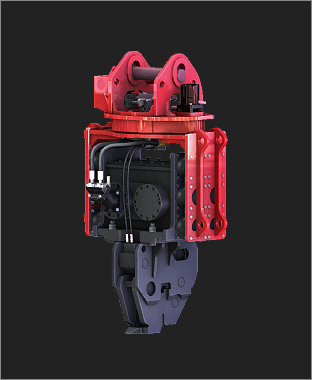

VIBROHAMMER
-
Faster and more powerful
Faster penetration and pulling up than other vibratory hammers due to bigger and double eccentric weight -
Easy and low maintenance
Heavy duty structure and components -
Rotational mounting
360° hydraulic rotation system -
Durability and strong life time

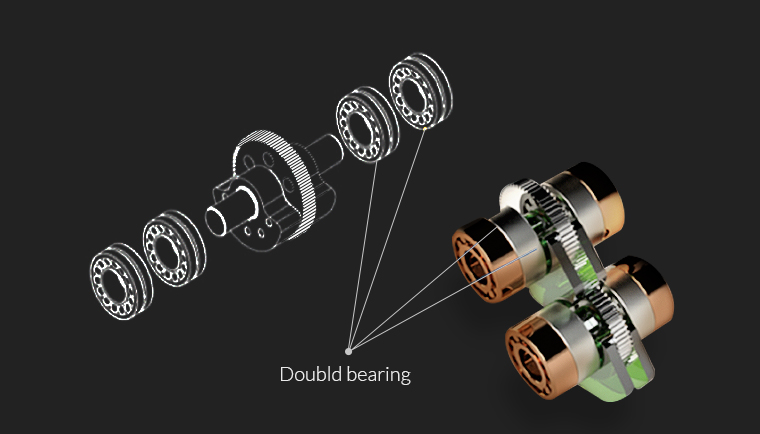

Unique design of double bearing structure -
Easy installation and operation
Easy technical education available by official manuals
TECHNICAL SPECIFICATIONS
| Model | UNIT | WT250 | WT300 | WT400 |
|---|---|---|---|---|
| Suitable Excavator | ton | 14~25 | 26~35 | 36~45 |
| Frequency | bpm | 2800~3000 | 2500~2700 | 2000~2200 |
| Eccentric Moment | Nm/in.lbs | 66/584 | 80/708 | 100/885 |
| Centrifugal Force | kN | 450 | 500 | 550 |
| Amplitude | mm | 12 | 14 | 16 |
| Setting Pressure | bar/psi | 250/3626 | 250/3626 | 280/4061 |
| Max. Operating Oil Flow | ℓ/min | 170-200 | 210-230 | 250-260 |
| Slewing | degree | 360 | 360 | 360 |
| Weight | kg | 1550 | 1700 | 1800 |
| Ext. Boom Weight (Incl. Mounting Cap) | kg | 580 | 700 | 870 |
| Clamp Width (A) | mm | 65 | 65 | 65 |
| Dimension (L x W x H) | mm | 1838 x 1044 x 755 | 1903 x 1106 x 796 | 1923 x 1190 x 837 |
| Max. working height | m | 8.5 | 10.5 | 11.5 |
- Above specifications are subject to change without prior notice for performance enhancement.
