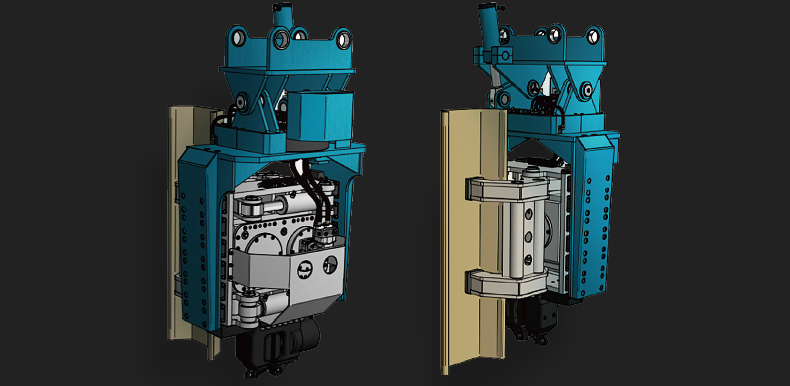

VIBROHAMMER -TILTING TYPE-
- Designed to drive sheet piles, H & I beams, timber piles and steel tubes etc
- High performance, safer and quicker than normal standard type vibro hammers
-
Enabling you to drive in longer materials than normal standard type vibro hammers
(i.e. normal STD type : 7~8m length sheet piles only)
TECHNICAL SPECIFICATIONS
| Model |
WSG30 |
| Operating weight |
2,000~2,250kg |
| Eccentric moment |
4.6kgm |
| Frequency |
2,300~3,000rpm |
| Pressure setting |
200~300bar |
| Centrifugal force |
395kN |
| Swing angle |
+/- 360 |
| Tilt angle |
+/- 30 |
| Size |
1400 x 1400 x 1800mm |
| Suitable carrier |
18~25ton |
- Above specifications are subject to change without prior notice for performance enhancement.
SUITABLE PILES
| Types |
Dimensions |
| Sheet pile |
300~600mm width / 150~300mm depth (max. up to 1,250kg / each pile) |
| H and I beam |
H160~H260 (max up to 1,250kg / each beam) |
| Timber pile |
150~320mm diameter (max up to 1,250kg / each timber) |
| *Tubular pile, tubes |
150~320mm diameter (max up to 1,250kg / each pile) |
